1) Model: HC-51M-P
Hot and Cold Multifunction Line Marking/Hole Punch
|
Hot and cold automatic strip cutter with line marking and hole punching capacity.
| SPECIFICATIONS |
• Machine will make up to 30 top/bottom line marks or hole
punches within cut pieces.
• Memory 100 patterns (additional memory available,
up to 500).
• Machine will cut to length hot/cold or special shapes.
• Touch screen control panel.
• Programmable counter.
• Hot knife and hole punch have adjustable dwell.
• Temperature of top and bottom heating elements on hot
knife are independently controlled.
• Width of cold blade 4 1/4" (wider blades available).
• Width of hot blade 4 1/4" (wider blades available).
|
|
• Diameter of hole punches (1/8", 3/16", 1/4", 3/8", and 1/2")
other sizes made to order.
• Hole punch available in hot or cold.
• Adjustable feed speed.
• Automatic stop when roll ends.
• Auto safety cover.
• Universal line marker holder.
• Available in 110 volts, 220 volts and 230 volts single
phase (CE).
• 85 pound of air pressure.
• Dimensions: 77"H, 60"W, 46"D
• Weight: 1000 pounds.
|
|
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Back to top
|
|

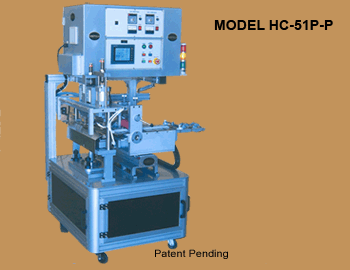

2) Model: HC-51P-P
Hot and Cold Hole Punching
 |
| SPECIFICATIONS |
• Machine will make up to 30 top/bottom line marks or hole
punches within cut pieces.
• Memory 100 patterns (additional memory available,
up to 500).
• Machine will cut to length hot/cold or special shapes.
• Touch screen control panel.
• Programmable counter.
• Hot knife and hole punch have adjustable dwell.
• Temperature of top and bottom heating elements on hot
knife are independently controlled.
• Width of cold blade 4 1/4" (wider blades available).
• Width of hot blade 4 1/4" (wider blades available).
|
|
• Diameter of hole punches (1/8", 3/16", 1/4", 3/8", and 1/2")
other sizes made to order.
• Hole punch available in hot or cold.
• Adjustable feed speed.
• Automatic stop when roll ends.
• Auto safety cover.
• Universal line marker holder.
• Available in 110 volts, 220 volts and 230 volts single
phase (CE).
• 85 pound of air pressure.
• Dimensions: 77"H, 60"W, 46"D
• Weight: 1000 pounds.
|
|
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Back to top

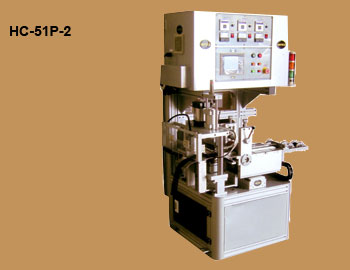

3) Model: HC-51P-2
Model HC-51P-2 can do up to 100 hole punches side by side, the clamping system in front of the hole punch and knife prevents the material from moving.
|
|
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Back to top

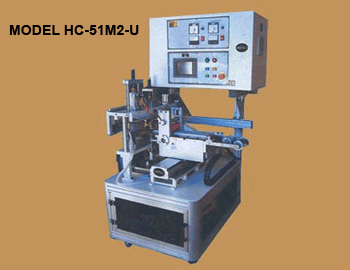

4) Model: HC-51M-U
3 Machines in 1
Hot and cold automatic strip cutter with top / bottom line marking and ultrasonic hole punching.
The HC-512M-U can do up to 30 hole punches (ultrasonically) and line marks on each cut piece.
Locations of hole punches and line marks are programmable. Machine has the capacity of 500 memory locations.
View Video
|
|
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Back to top
|
|

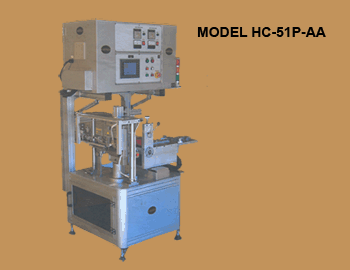

5) Model: HC-51P-AA
Hot/Cold Angle Cutter
Automatic angle strip cutter with hole punching.
|
6) Model: C-51P-PC
|
|
|
